So, what does a video wall actually cost? The honest answer is, it depends. A realistic budget can start around $15,000 for a straightforward indoor setup and soar to well over $500,000 for a massive, high-performance outdoor display. The final number really comes down to your vision, the technology you choose, and how complex the installation will be.
Asking about the price of a video wall is a bit like asking about the price of a vehicle. A simple sedan gets you from point A to B, but a heavy-duty commercial truck built for rugged terrain is in a completely different ballpark, both in price and performance. The same logic applies here; there’s no single "sticker price."
Your total investment is a mix of hardware, software, and skilled labor. The display panels are just one part of the puzzle. The true cost includes everything from the video processor that drives your content to the custom mounting hardware and the specialized team needed for a flawless, safe installation.
Understanding what drives the cost is the first step to building a realistic budget. Your final quote will be shaped by a blend of technical specs and what you need the display to do. Here are the key factors that create that wide price spectrum:
This growing investment reflects a huge market trend. The global LED video wall market was valued at $24.37 billion in 2024 and is expected to nearly double, a clear sign of massive industry-wide adoption of this powerful visual technology.
A video wall is a complete system, not just a screen. The only way to avoid surprise expenses and guarantee a successful outcome is to budget for the total project—including installation, processing, and any structural work.
Once you understand these core components, it becomes clear why a simple per-panel price can be misleading. The real video wall cost is the all-in price to bring your vision to life, from the initial design all the way to the moment you power it on.
To give you a clearer starting point, we've put together some typical all-in project costs for common video wall applications. These are ballpark estimates that include the displays, processor, mounting, and basic installation.
| Application Type | Common Size | Typical Pixel Pitch | Estimated Cost Range (All-In) |
|---|---|---|---|
| Outdoor Digital Billboard | 10' x 20' | 6mm – 10mm | $75,000 – $150,000+ |
| Indoor Retail/Lobby Wall | 8' x 5' | 1.8mm – 2.5mm | $25,000 – $60,000 |
| Control Room/NOC | 15' x 6' | 1.2mm – 1.8mm | $80,000 – $200,000+ |
| Large Venue/Auditorium | 25' x 14' | 2.5mm – 3.9mm | $120,000 – $350,000+ |
| High-End Home Theater | 12' x 7' | 0.9mm – 1.5mm | $100,000 – $400,000+ |
Remember, these are just reference points. Factors like custom structural work, complex content management systems, or extensive electrical upgrades can push the final cost higher.
To really get a handle on budgeting for a video wall, you have to look past the final dimensions and dig into the specific parts that build up the total cost. It’s a lot like building a custom home—the price isn’t just about square footage. It’s about the quality of the materials, the strength of the foundation, and all the specialized systems running behind the scenes.
Getting familiar with these technical details is your key to making smart trade-offs. When you know which factors have the biggest impact, you can put your money where it counts, investing in features that matter for your project without overspending on things you don't need.
Without a doubt, the single biggest driver of your video wall cost is pixel pitch. Think of it like the thread count on a set of high-end sheets. A low thread count feels rough and you can see the individual threads, while a high count feels silky smooth. With LED, a smaller pixel pitch number means the tiny lights are packed closer together, creating a seamless, detailed image that looks razor-sharp even when you’re standing right next to it.
This detail is absolutely crucial. A massive digital billboard people see from 50 feet away can get away with a wider pixel pitch (like 6mm or 10mm) because your eyes naturally blend the pixels together at a distance. But for a retail display that customers walk right up to, you need a much tighter, or "finer," pixel pitch (like 1.8mm or 2.5mm) to avoid that blocky, pixelated look.
Here's a quick rule of thumb: Halving the pixel pitch can nearly quadruple the number of LEDs needed for the same physical area. That jump in density massively increases manufacturing and assembly costs.
This is exactly why a small, ultra-fine pitch screen for a boardroom can easily cost as much as a much larger, wider-pitch screen built for an arena. You're paying for pixel density, and that density dictates everything from the ideal viewing distance to overall image clarity.
While pixel pitch sets the cost per square foot, the wall's overall physical size obviously plays a huge part in the final bill. It’s simple math: a larger wall needs more LED panels, more mounting hardware, and more labor to put it all together.
But it isn't always a straight line of multiplication. Sometimes, bigger projects can tap into economies of scale during manufacturing and shipping. The real trick is to find the sweet spot between the "wow" factor you’re after, the physical limits of your space, and what your budget can handle.
For screens under 100 inches, you might find that a high-end commercial TV is the more cost-effective option. But the moment you cross that threshold, the price of giant TVs skyrockets. That’s where modular LED panels become the clear winner, offering a practical and financially sound path to a truly massive, seamless visual canvas.
Not all light is created equal. A video wall's brightness, measured in nits, is a critical spec that directly impacts its cost and whether it’s right for a specific environment. An indoor display in a hotel lobby or office doesn't have to fight the sun, so it works perfectly in the 500-800 nit range.
Outdoor displays? They're in a whole different league. To stay vibrant and readable on a bright, sunny day, they need to pump out 5,000 nits or more. This demands more powerful LEDs, beefier cooling systems to handle the extra heat, and robust power supplies—all of which drive up the price.
Getting the brightness wrong is a costly mistake, and it can go both ways:
The two heavyweights in the video wall world are Direct View LED (DVLED) and LCD. Both can create stunning, large-scale visuals, but they come with different strengths, weaknesses, and price tags.
LCD Video Walls:
LED Video Walls:
Today, if you’re looking for that flawless, uninterrupted visual experience, LED is the technology leading the way.
A video wall is more than just a bunch of screens—it needs a powerful "brain" to stitch the image together and manage your content. That brain is the video wall processor or controller. A basic processor might simply stretch a single video source across all the screens, which is perfect for simple digital signage.
But for more demanding jobs, you need a much smarter processor. Think about a corporate command center that has to display feeds from dozens of sources at once—security cameras, live data dashboards, video conference calls, and news channels. A high-end processor that can juggle all those inputs is essential for mission-critical operations, and it can add thousands, or even tens of thousands, of dollars to the total cost.
How you attach the video wall to your building is a critical—and often underestimated—cost factor. The easiest and cheapest scenario is a standard, flat mount on a perfectly straight, structurally sound wall.
Any time you stray from that standard, things get more complex and more expensive.
These custom solutions aren't off-the-shelf. They demand detailed engineering plans and skilled fabrication, which adds a significant amount to the project's bottom line. Factoring in these structural needs early on is the best way to avoid sticker shock during the installation phase.

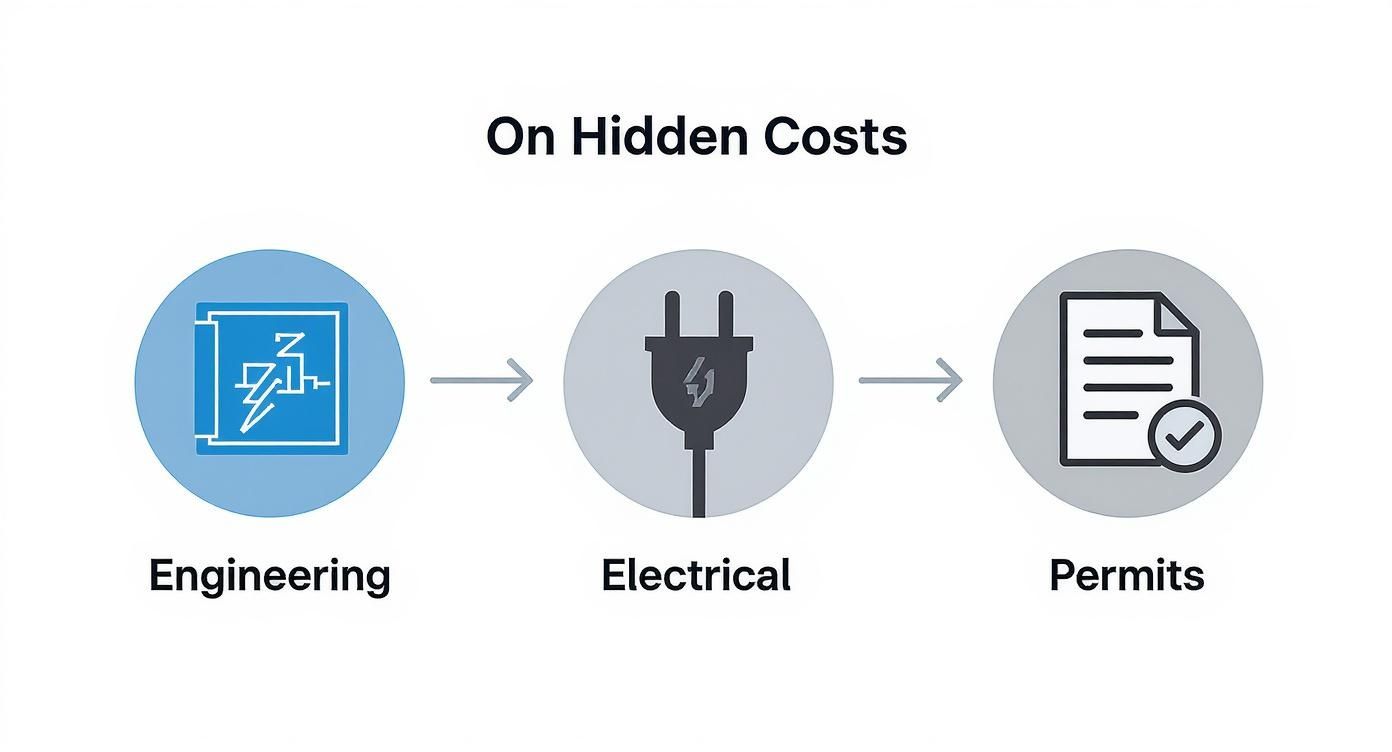

It’s one of the most common—and costly—mistakes we see people make: focusing only on the price of the LED panels themselves. That hardware quote? It's just the starting point. The real, all-in video wall cost is a mix of critical services and requirements that are absolutely essential to get the job done right.
Ignoring these "hidden" expenses is a recipe for blown budgets and painful project delays. A truly honest quote accounts for every single step, from the first site visit to the moment you flip the switch. Let's pull back the curtain on these crucial costs so you can plan your budget with total confidence.
Before a single panel even comes out of the box, you have to be certain your building can actually handle the weight. A large video wall can easily weigh thousands of pounds, putting a serious amount of stress on whatever it's attached to.
Structural Engineering: You'll need a professional structural engineer to assess the load-bearing capacity of your wall. This isn't optional; it's a non-negotiable safety requirement. They might find that the wall needs to be reinforced, which immediately adds another line item to your budget.
Dedicated Electrical Work: Video walls are thirsty for power. You can't just plug one into a standard outlet and call it a day. A certified electrician will need to run dedicated, high-amperage circuits straight from your main electrical panel to the display’s location. This ensures a clean, consistent power draw and prevents a major fire hazard.
This foundational work is the bedrock of a successful installation, and it represents a significant cost that some vendors might conveniently leave out of an initial hardware-only quote.
Getting a massive, fragile video wall to your location and securing the legal right to install it adds another layer of expenses that are all too easy to forget. These hurdles are especially critical for bigger projects, like digital outdoor signage.
Think of a video wall installation as a mini-construction project. It requires the same level of professional planning, oversight, and regulatory approval as any other major addition to your building.
Shipping isn't cheap. We're not talking about standard packages here; delicate, oversized LED panels require specialized freight handling and insurance to protect your investment on its journey. On top of that, most cities and counties require building permits for an installation of this scale, especially when it involves major structural or electrical work. The permit fees and the time it takes to get them approved have to be baked into your timeline and budget from day one.
Finally, you have the cost of the crew that actually builds your wall. A DIY approach might look like a great way to save a few bucks, but it's a high-risk gamble that can easily void warranties, create safety issues, and leave you with a disappointing result.
Certified installers bring specialized tools, but more importantly, they bring experience. They know all the little tricks to get panels perfectly aligned for a seamless image, how to manage a maze of wiring, and how to troubleshoot problems on the spot. Their expertise is what transforms a pallet of expensive parts into a stunning, reliable asset for your business.
Remember, installation costs also change depending on where you are. As noted by industry analysts, regional cost variations show significant disparities across global markets, with North America having a dominant market position while China has emerged as a cost leader due to its manufacturing capabilities. You can find more insights on the global video wall market on dataintelo.com. A professional team ensures the job is done right the first time, protecting your investment for years to come. When you get a quote, always ask: "Does this include the cost of a certified, insured installation crew?"
Theory and specs are one thing, but seeing how the numbers stack up in the real world is where a budget really starts to feel concrete. To get a real feel for video wall cost, let's walk through four completely different scenarios. Each one is a common application with its own unique set of demands, showing just how much the final investment can swing based on your goals.
These examples will help translate abstract ideas like pixel pitch and brightness into actual, story-driven quotes. You'll see exactly why a small, ultra-sharp indoor wall can end up costing just as much as a much larger, tougher outdoor display.
Picture a chic boutique that wants to install a dynamic, high-end feature wall right behind the cash register. The idea is to loop brand videos and gorgeous product shots that customers will see from just a few feet away.
In this situation, the budget is almost entirely driven by pixel density. The price per square foot is high, but since the overall size is small, the total cost is a manageable investment for a business focused on elevating its brand image. The final bill for a project like this would likely land around $26,000, with the majority of that cost—around $18,500—going directly to the fine-pitch LED panels.
Now, let's switch gears to a commercial property owner installing a digital billboard along a busy highway. This project is all about raw power, visibility, and durability.
Here, the investment priorities flip. We're not worried about super-fine pixel density; a wider pitch like 8mm is perfect since people will be seeing it from hundreds of feet away. The big-ticket items are the specialized, high-output LEDs and the rugged, weather-sealed cabinets they live in.
This is also where "hidden costs" really come into play.
As you can see, things like structural engineering, bringing in dedicated high-voltage power, and navigating local permits are major expenses that have to be baked into any serious billboard budget.
Imagine a logistics company building a new 24/7 network operations center (NOC) to track global shipments. They need a massive, seamless canvas to display dozens of data streams, maps, and video feeds all at once.
The industrial display world, which includes control rooms, plays by its own set of rules. The global market for these specialized video walls was valued at USD 3.53 billion in 2024, which shows you the premium placed on rock-solid reliability in these mission-critical spaces.
In a control room, the cost of the video processor can sometimes be as much as the LED panels themselves. That’s because the whole point of the system is its ability to flexibly manage and display dozens of simultaneous data feeds.
When you're putting together a budget for a commercial space, it can be helpful to see how it stacks up against broader benchmarks, like the typical commercial renovation cost per square foot.
Last but not least, a home theater fanatic wants to create the ultimate movie-watching experience, ditching the projector for a completely seamless LED wall.
This is the absolute peak of LED technology, where every penny goes toward creating a perfect, reference-quality image. The incredibly fine pixel pitch and the advanced processing needed for true HDR and cinema-grade color make this the most expensive option per square foot by a long shot, even more than the control room. It’s a serious investment for those who simply have to have the best visual experience possible.
To pull all this together, let's look at how the costs might break down across these four very different projects. This isn't a final quote, of course, but it gives you a clear idea of where the money goes in each scenario.
| Cost Component | Retail Store Wall | Outdoor Billboard | Control Room | Home Theater |
|---|---|---|---|---|
| LED Panels | $18,500 | $65,000 | $60,000 | $85,000 |
| Controller/Processor | $2,500 | $7,000 | $25,000 | $15,000 |
| Mounting/Structure | $1,200 | $15,000 | $8,000 | $4,000 |
| Installation & Labor | $3,800 | $12,000 | $14,000 | $10,000 |
| Structural/Electrical/Permits | $0 | $25,000 | $5,000 | $2,000 |
| Total Estimated Cost | $26,000 | $124,000 | $112,000 | $116,000 |
Notice how the priorities shift? For the retail wall, it's all about the panels. For the billboard, the structure and site work are huge factors. And in the control room, the processor is a massive part of the budget. Each project tells a different story, and the numbers reflect that.
Any smart investment looks beyond the initial sticker price. While it’s tempting to focus only on the upfront video wall cost, you don't get the real financial picture until you consider its entire lifecycle. This way of thinking is called Total Cost of Ownership (TCO), and it's the secret to making a sound business decision.
TCO forces you to think like a long-term owner, not just a one-time buyer. It accounts for all the ongoing expenses needed to keep your display running beautifully for years—from predictable operational costs to potential repairs down the road.
To budget accurately, you have to factor in the recurring costs that will pop up long after the installation crew has packed up and gone home. These are the core pieces of your TCO puzzle.
Getting a handle on these elements prevents nasty financial surprises later and helps you compare quotes more intelligently. A lower initial hardware cost might get wiped out by higher energy bills or expensive support, making a seemingly pricier option the better long-term value.
Once you know the total cost, the next big question is: What do I get back? A video wall isn't just an expense; it’s a strategic asset designed to hit specific business goals. Measuring your Return on Investment (ROI) means defining what success looks like and figuring out how you'll track it.
The ROI can be concrete, like a jump in sales, but it can also be less tangible, like improving efficiency or just making your brand look more prestigious.
Studies show that dynamic digital displays like video walls can increase brand awareness by as much as 48%. That powerful lift in visibility directly contributes to customer recall and preference, forming a huge part of your ROI.
To start framing your ROI, just ask yourself a few key questions:
By answering these questions, you shift the conversation from cost to value. The investment stops being a line item and becomes a powerful tool for growth. That's the mindset you need to gain a competitive edge.
To see how different industries are winning with this technology, you can learn more about how powerful LED signs for businesses can be. This strategic approach ensures your video wall is a valuable contributor to your bottom line for years to come.
Okay, you've got a handle on what drives the cost of a video wall. Now it's time to move from theory to reality and get a quote you can actually work with.
To get a number that’s more than just a shot in the dark, you need to do a little homework first. Coming to the table with a clear picture of what you want to achieve is the single best way to get a precise, reliable estimate and avoid the kind of vague ballpark figures that blow up budgets later on.
Before you pick up the phone or send that first email, pull together the answers to these core questions:
Having clear answers to these questions instantly elevates you from a casual browser to a serious buyer. It allows us to give you a detailed, actionable quote instead of just a loose guess.
Ready to get a sense of the numbers? Jump over to our free LED sign calculator for a quick preliminary estimate.
For a detailed, project-specific quote from our specialists, schedule a free consultation and we'll walk you through everything.
Of course, once you start digging into the numbers, a few more practical questions always seem to pop up. Let's run through some of the most common ones we hear from clients as they're trying to nail down a budget and make a final call.
This is easily the most-asked question, but honestly, "cost per square foot" can be a tricky way to look at a video wall. Why? Because the price is almost entirely driven by the pixel pitch (how close the LEDs are to each other), not just the physical size. A small, super-detailed indoor screen can easily cost more per square foot than a massive roadside billboard.
Still, you need a place to start for your initial planning. Here are some very broad, all-in ranges to keep in mind:
Again, treat these as ballpark figures. They help frame the conversation, but a detailed quote tailored to your specific project is the only way to get a true number.
A well-built, professionally installed LED video wall is a serious long-term asset. Most modern LED panels are rated for 80,000 to 100,000 hours of operation. If you run your display for a standard business day, say 12 hours, that works out to a lifespan of roughly 18 to 22 years.
It's not just about the LEDs themselves. The real mark of a long-lasting wall is the quality of the other components—things like power supplies and receiving cards. Skimping on these parts is the fastest way to shorten your wall's lifespan, which is why investing in quality hardware from the get-go is so critical.
Of course, like any display technology, you'll see a gradual, graceful degradation in performance over time, with brightness slowly dimming after many years of service. You can get the most out of your investment with regular maintenance and by running the display at appropriate brightness levels instead of full blast 24/7.
I get why people ask this—it seems like a logical place to cut costs. But we strongly, strongly advise against a DIY installation. This isn't like hanging a big-screen TV. A professional install is a highly technical process involving perfect panel alignment, complex low-voltage wiring, calculating power loads, and ensuring the structural mounting is safe and secure.
Trying to do it yourself often leads to a world of pain:
Think of the professional installation cost as insurance. It’s an investment that guarantees the safety, performance, and longevity of the very expensive hardware you just bought.
Yes, absolutely. A video wall is a major capital investment, and most businesses don't pay for it out of pocket. Financing and leasing are incredibly common and allow you to get the technology you need now while spreading the cost over time. This keeps your cash flow free for other day-to-day operational needs and turns a big one-time expense into a predictable monthly payment.
