Compare Before You Buy

Make informed purchasing decisions with our comprehensive side-by-side product analysis. Evaluate key features, advantages, and limitations to determine the optimal choice for your needs.
Shop Now ⟶
Planar DLU 1.2 PRO SmartLED COB P1.2 Pro

Cabinet

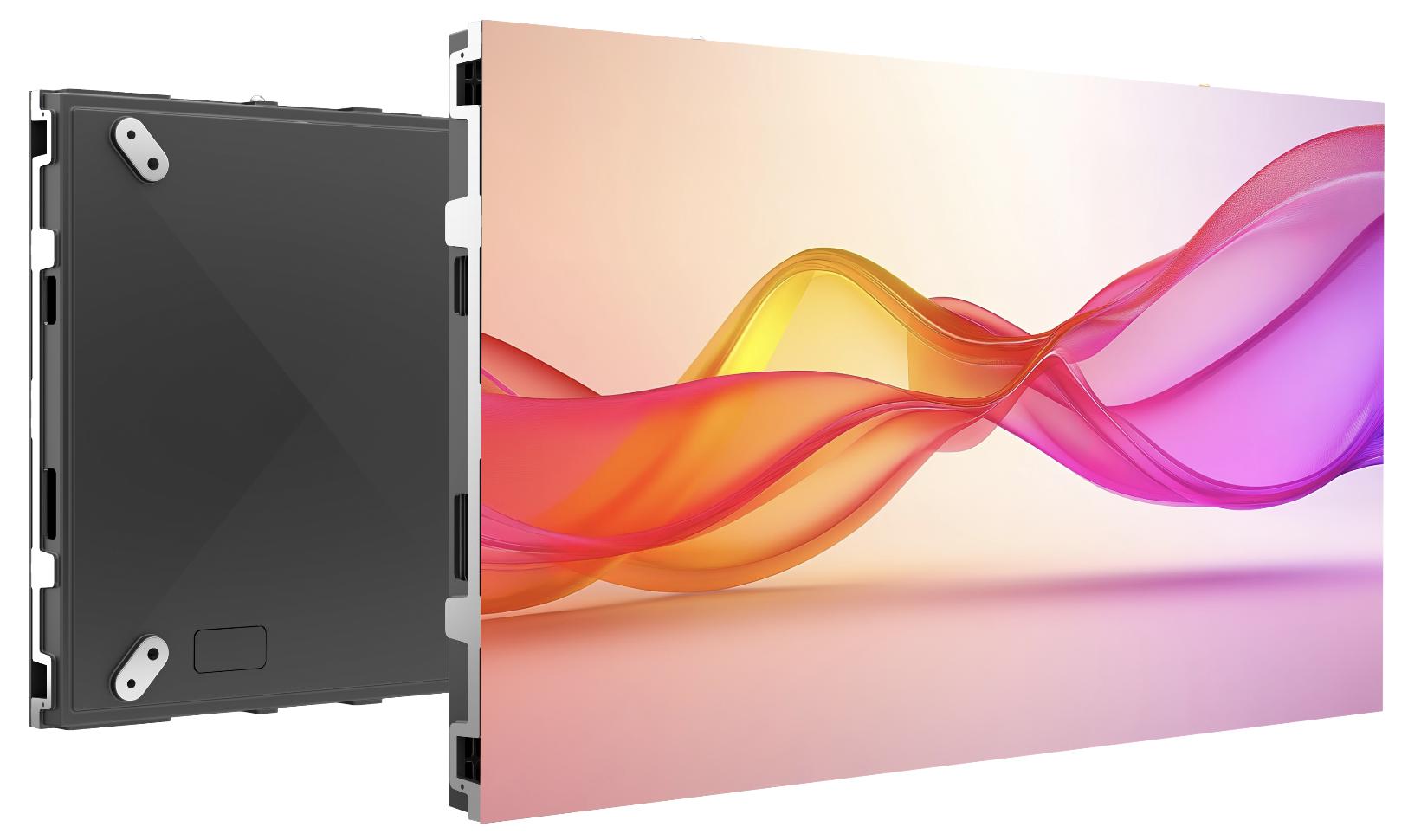

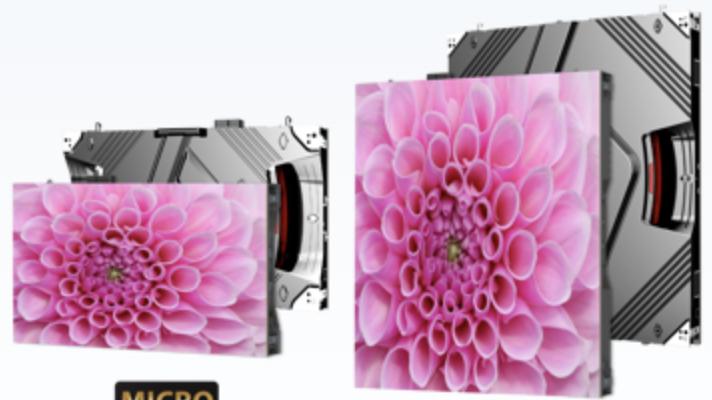

SmartLED P1.2 Pro VS Planar DLU Pro.pdf image 000

SmartLED P1.2 Pro VS Planar DLU Pro.pdf image 001
LED Type
MicroLED Flip-chip
MicroLED Flip-chip
Module Type
unknown
Proprietary COB coating
Module Type
unknown
IP54
Module Surface Anti-scratch
unknown
3H hardness
Calibrated Brightness
500 NITS
800 NITS
High Brightness Version
1600nit (optional)
1500nit (optional)
Controller Compatibility
Planar/Colorlight/Brompton
Colorlight/Brompton/Novastar
Warranty Term
Lifetime limited warranty
Lifetime limited warranty
Max. Power Consumption
68W @ 500 NITS
70W @ 800 NITS
5G Receiving Card
support
support
Touch Control
support
support
7*24 Operating
support
support
Sleep Mode
support
support
Pixel Pitch
P1.26*1.25 (irregular pixel)
P1.27 (regular & symetrical pixel)
Cabinet Resolution
480*270 480*540
480*270
Pixel Density
629882pxl/sqm
620001pxl/sqm
Viewing Angle（50% brightness）
＞170° Horizontal / ＞170° Vertical
＞170° Horizontal / ＞170° Vertical
Cabinet Size
604.8*340.2*72.5mm/23.81*13.39*2.85in
604.8*680.4*72.5mm/23.81*26.78*2.85in
609.6*342.9*40.5mm/24*13.5*1.6in
Cabinet Weight
27”-6.94kg/15.3lbs
36”-13.2kg/29.1lbs
27″ – 5kg/11.023lb
Installation & Service Access
Front Access, module removal. All internal electronics accessible
Front Access, module removal. All internal electronics accessible
Contrast Ratio
10,000:1
20,000:1
Brightness Uniformity
≥97%
≥97%
Color Uniformity
≥97%
≥97%
LED Refresh Rate
≥3840Hz
≥7680Hz
Low Flicker under Low Brightness
unknown
YES
Color Space
93% DCI-P3
97% DCI-P3
Module Resolution
240*136
120*135
HDR
support
support
Gray Scale
unknown
22bit
Frame Rate
unknown
upto 120 FPS adaptive frame rate
Redundant Power and Data
unknown
support
Custom Sign Request
